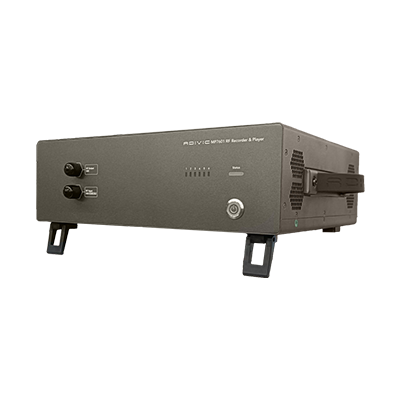

MP7601

Key Features

• Ultra-high frequency coverage from 300 KHz to 6.0 GHz
• Pre-trigger function to keep your valuable record data even before the trigger event
• 100 MHz super wide bandwidth capable of simultaneously record/playback of 16 NTSC TV channels
• MP7601 can have a maximum of 7 sets, synchronized in parallel, RF record/playback
• 16-bit high resolution of the ADC/DAC
• Smart AGC to extend usable dynamic range to greater than 150  dB
• High linearity to accommodate strong & weak signals

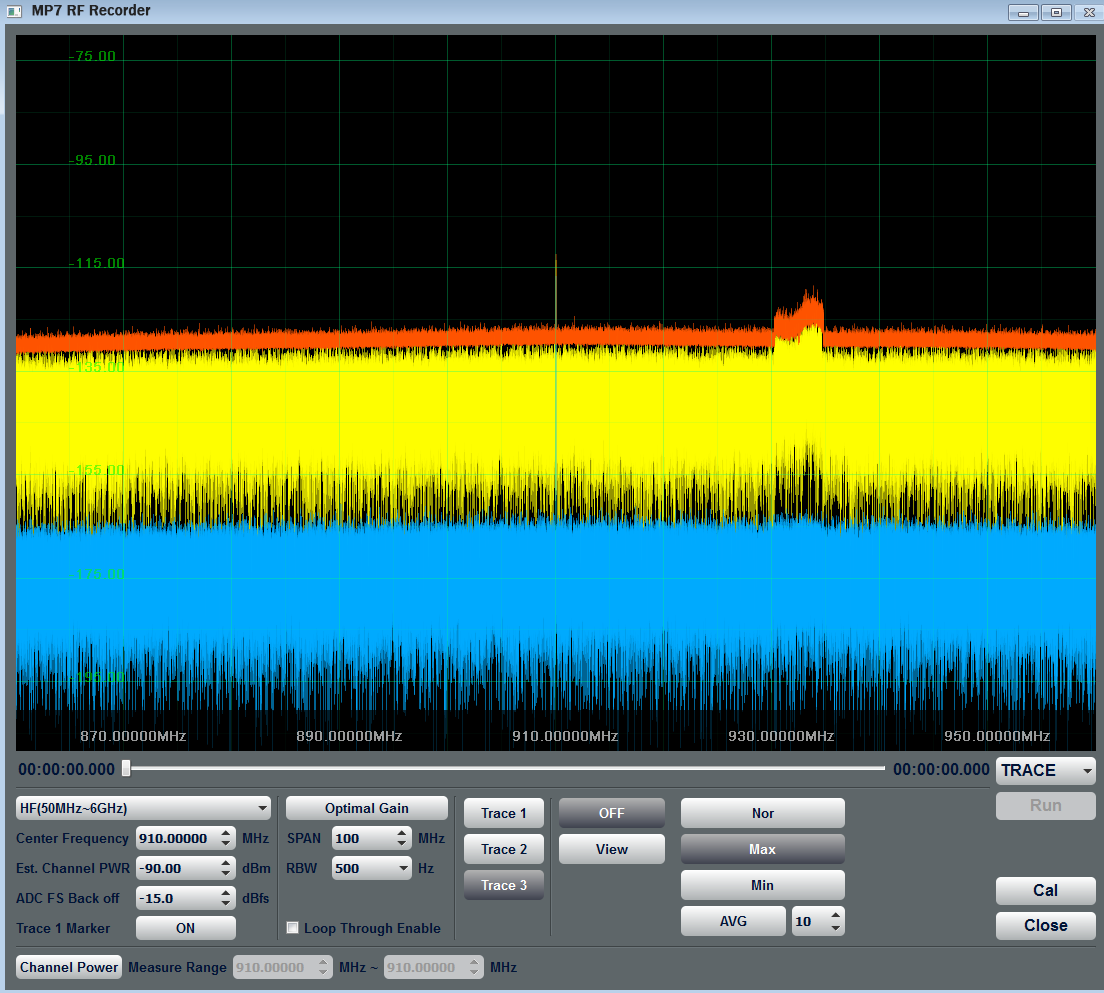

• Additional traces for maximum/minimum holds
• 20+ markers for easy signal identification
• Baseband IQ data formats compatible to MATLAB
• Software utility support including I/Q data extractor and file segmentation
• 2.5 inches SSD x4 internal drive bays (4 X 1 TB by default, 2 TB x4 upgradable)
• 1PPS, IRIG-B support (Optional)

Test your product with the Real-World signals:

• Eventually your Receiver has to receive the real-world signal, yet,…
• None of the existing signal generators can 100% emulate the real world signals,
• Only the RF recorder/player can bring back repeatable real world RF signals to your lab

When will you need a RF recorder ?

• Your DTV/DAB/GPS receiver chip can’t decode properly in certain location
• Your receiver works fine in some locations, however doesn’t in some other locations.
• Virtual signal source, can be any signal generator
